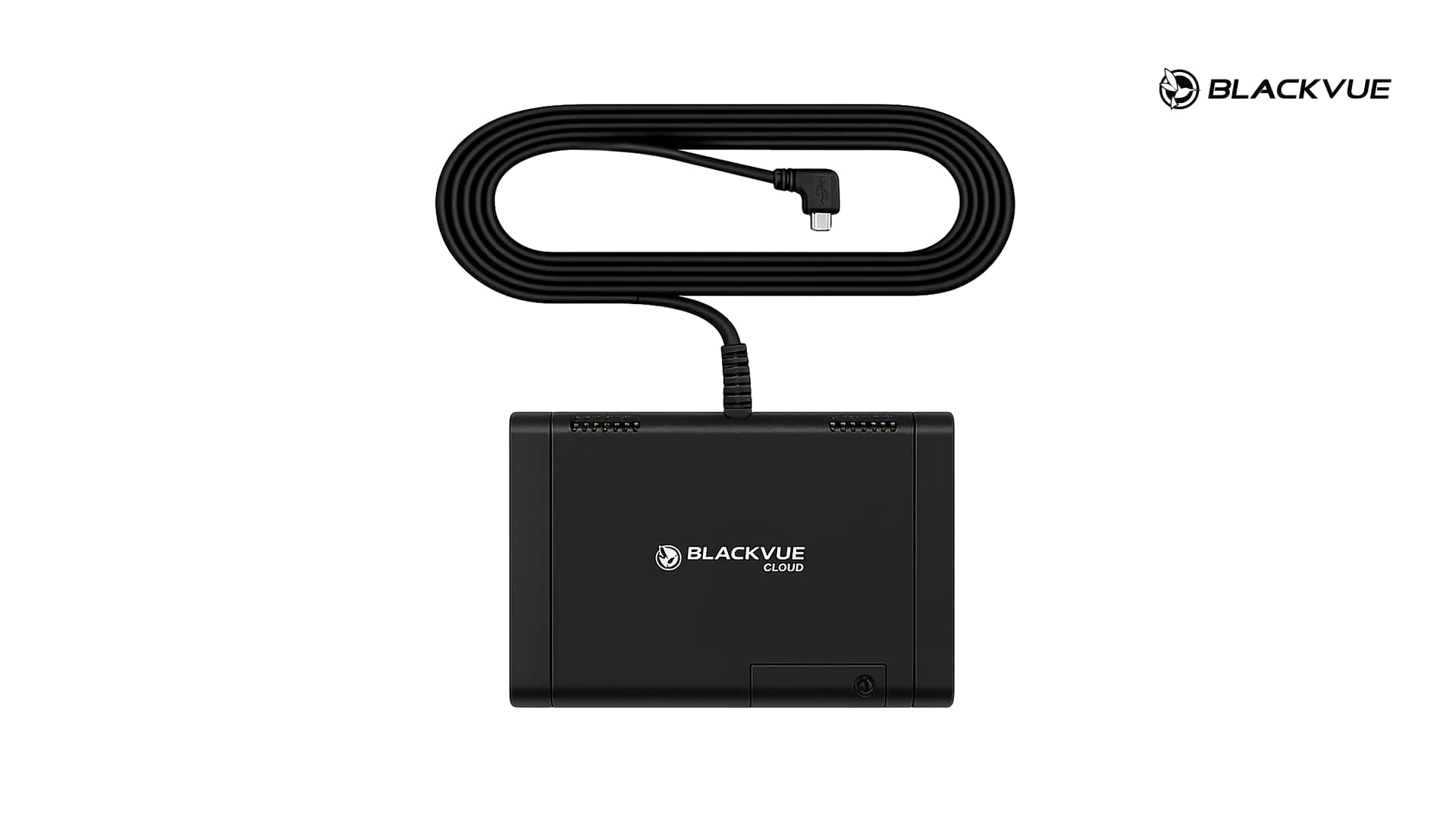

The BlackVue CM100G LTE module plugs into your dash cam and adds 4G connectivity, giving you Cloud access, remote live view and impact alerts on your phone. Available in Singapore from Autoimage.
Note on region: the CM100G LTE ships in region-specific variants (NA, GL, JP) with different band support. Confirm the variant matches your network before purchase.
Specifications
| Function | External 4G LTE connectivity module with built-in GNSS |
|---|---|
| LTE module | Quectel EC25 |
| LTE category | Cat. 4 FDD, up to 150Mbps down / 50Mbps up |
| GNSS | GPS L1, GLONASS G1, Galileo E1, BeiDou B1 |
| SIM | Nano SIM, 3.0V. Not included |
| Dimensions / weight | 90 x 60 x 10mm, 110g |
| Connector | Micro USB Type-B with harness cable |
| Power | Supplied by the dash cam. 3.3V-5.5V, max 2A |
| Power consumption | Idle 30mA, traffic mode 620mA at max power |
| Mobile hotspot | Yes, up to 5 devices on compatible models |
| Compatible with | Elite Series, DR970X, DR770X, DR770X Box and X Plus series. Not compatible with DR590X |
Supplied, installed and supported by Autoimage Enterprise, 159 Sin Ming Road, Singapore. Over 30 years in car audio and vehicle electronics. WhatsApp us for stock availability and an installation slot.
