Description
Specifications
Description

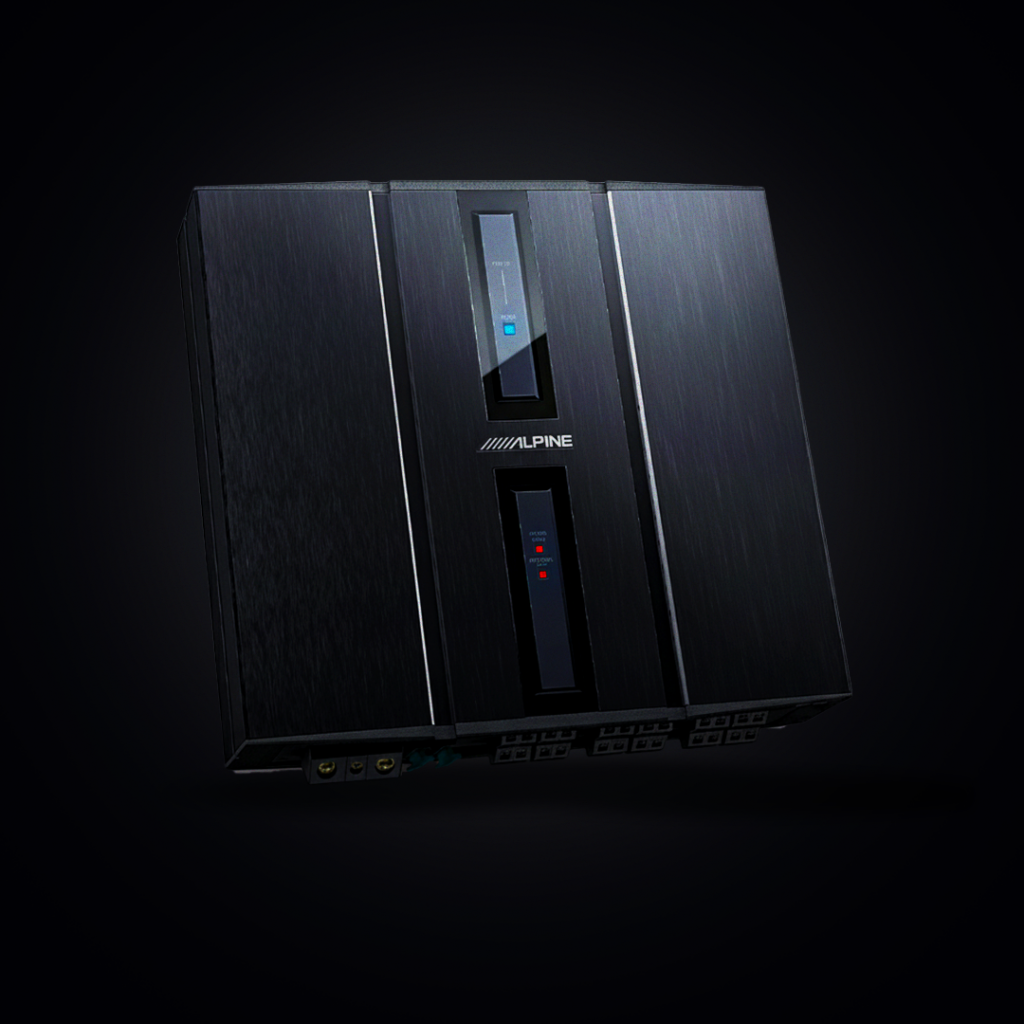

This DSP amplifier uses many components and technologies of the AlpineF#1Status processor for audiophile sound quality and is very flexible with tons of different input and output capabilities. It runs an internal sampling rate of 192kHz / 24bit and features a 14-Ch 31-band P-EQ, 3-Way X- Overs, and 12-Ch digital time correction with 7mm steps adjustment.
Specifications
Frequency response
- 20 – 40 kHz (Hi-res)
- Hi-Resolution 192kHz / 32Bit Playback
Power handling
- Inputs – 2ch RCA, 12Ch High Level
- Outputs – 10Ch RCA
- Output – 12 Ch High Level (50Wx8 + 80Wx4)
- 31 Band P-EQ/G-EQ
- Matrix Input Summing
- Bluetooth Audio
- Sampling Rate = Internal: 192kHz / 64Bit
- S/N: >110db, THD:<0.001
- Optical
- Coaxial
Design
- Optional Controller
Dimension
- 278 mm x 256 mm x 58 mm
